Self-hosting

1. Before you start

Deploy a published image using the supplied configuration files. Complete the checks below before downloading the files.

Deploy the web application with Caddy for HTTPS, Soketi for signaling, and coturn for STUN/TURN. You do not need an Online Services subscription. Use manual vault backups with this setup; it does not include managed backups.

Prepare your server and domain

• Provision an Ubuntu 24.04 LTS server with a public IPv4 address. Sign in with an unprivileged user that has administrator access through sudo.
• Install Docker Engine and the Compose plugin, curl, and OpenSSL. Verify with docker compose version. Confirm your user can run Docker before continuing.
• Choose a domain you can edit and locate the server's firewall settings. Ports 80, 443, and 5349 must not already belong to another service.
• Set aside two devices for the final test. Connect one to your home network and the other to mobile data.

Use the recommended TLS TURN setup below. It encrypts the connection between each client and coturn on TCP 5349. Vault synchronization is also end-to-end encrypted between devices. Use the regular TURN alternative in step 5 only if you deliberately want a setup without TURN TLS. Run these steps on Linux, not Docker Desktop, and keep coturn's host networking enabled.

2. Get the deployment files

1# Stop this block if any command fails, without closing your terminal
2(
3set -e
4# Create a directory for this deployment
5mkdir -p cryptex-self-hosted
6cd cryptex-self-hosted
7# Replace this placeholder before running the download loop
8RELEASE=REPLACE_WITH_RELEASE_TAG_OR_COMMIT
9# Download the configuration templates and certificate hook from the same release
10for file in compose.yaml Caddyfile .env.example turnserver.conf.example deploy-turn-certificate.sh; do
11  curl --fail --show-error --location --output "$file" \
12    "https://raw.githubusercontent.com/CryptexIndustries/vault-web/$RELEASE/deploy/self-hosting/$file" || {
13      echo "Download failed: $file. Check the release and connection before continuing." >&2
14      exit 1
15    }
16done
17echo "All deployment files downloaded."
18) && cd cryptex-self-hosted

1# Create editable configuration files
2cp .env.example .env
3cp turnserver.conf.example turnserver.conf
4# Allow only the owner to read and write these files
5chmod 600 .env turnserver.conf
6# Copy this output into SOKETI_APP_KEY in .env
7openssl rand -hex 32
8# Copy this output into SOKETI_APP_SECRET in .env
9openssl rand -hex 32
10# Copy this output after your username in turnserver.conf
11openssl rand -hex 32

Use the three generated values for the Soketi key, Soketi secret, and TURN password respectively. Do not reuse the example placeholders. The real .env and turnserver.conf files contain credentials and must remain outside the web application's public directory.

3. Set DNS and open the firewall

Create these DNS-only A records pointing to the VPS's public IPv4 address. Replace example.com with your domain. Do not publish AAAA records for this IPv4-only setup or put these names behind a CDN proxy.

Allow these inbound ports in both the VPS provider's firewall and the host firewall. Secure SSH using Ubuntu’s OpenSSH guide and configure the host firewall using Ubuntu’s UFW guide. Verify a second SSH session works before closing the first or changing access rules. Follow Docker’s UFW guidance: published container ports can bypass UFW. Use the provider firewall to enforce the public allowlist.

Leave 3478 closed for the TLS-only setup. Keep the UDP relay range open even when clients connect over TLS. Allow outbound DNS, HTTPS, and traffic to peers on arbitrary UDP ports. Do not expose ports 3000 or 6001. Caddy reaches those services over the private Docker network.

4. Fill in two configuration files

Environment settings

Edit .env. Set VAULT_DOMAIN, SIGNAL_DOMAIN, TURN_DOMAIN, and ACME_EMAIL. Leave SOKETI_APP_ID=cryptex-self-hosted and replace SOKETI_APP_KEY and SOKETI_APP_SECRET with your generated values. Set VAULT_IMAGE to ghcr.io/cryptexindustries/vault-web@sha256:YOUR_VERIFIED_DIGEST. Resolve the digest for your chosen release from the published images. Use the command below. Leave COMPOSE_FILE commented out.

1# Replace the tag with the release you chose in step 2
2docker buildx imagetools inspect ghcr.io/cryptexindustries/vault-web:YOUR_PUBLISHED_TAG
3# Copy the top-level Digest into VAULT_IMAGE in .env
4# VAULT_IMAGE=ghcr.io/cryptexindustries/vault-web@sha256:YOUR_VERIFIED_DIGEST

Leave NEXT_PUBLIC_CLOUD_ENABLED=false and SOKETI_DEFAULT_APP_ENABLE_CLIENT_MESSAGES=true in the Compose file. These settings disable the account backend and allow device-linking messages. Enter the Soketi app secret in the client at step 6; you do not need to deploy a separate authentication API.

TURN settings

Set TURN_DOMAIN=turn.example.com in .env, using your own hostname. Use that same name for the certificate, coturn's realm, and the client URL.

In .env, set TURN_UID and TURN_GID to the output of id -u and id -g for the unprivileged user who owns the configuration file. This lets coturn read the protected file without running as root.

Edit turnserver.conf. Set realm and server-name to turn.example.com. Replace the password in user=REPLACE_WITH_USERNAME:REPLACE_WITH_RANDOM_HEX. Choose your own username and replace both placeholders. Use those same credentials in the client.

Run ip -4 addr. Set listening-ip and relay-ip to the VPS interface address. If the provider assigns a private interface address behind a public IP, also set external-ip=PUBLIC_IPV4/PRIVATE_INTERFACE_IPV4. That NAT must forward the listener and relay ports without changing their port numbers.

Keep the template's authentication, blocked peer ranges, allocation limits, and bandwidth limits enabled. Share TURN credentials only with the devices using your deployment.

5. Start the services

TLS encrypts the connection to coturn and requires a trusted certificate. Regular TURN skips certificate setup. Vault synchronization remains end-to-end encrypted with either option.

1# Install Certbot on the Ubuntu host
2sudo apt update
3sudo apt install -y certbot
4# Prepare the HTTP challenge directory and protected certificate directory
5sudo install -d -m 0755 /var/lib/cryptex-acme
6# Use the same group ID you set as TURN_GID in .env
7sudo install -d -o root -g "$(id -g)" -m 0750 /etc/cryptex-turn/tls
8# Validate settings without printing credentials
9docker compose config --quiet
10docker compose pull
11# Start HTTPS and signaling; coturn starts after certificate installation
12docker compose up -d --no-build web soketi caddy

1# Request a trusted certificate for your TURN hostname
2sudo certbot certonly --webroot -w /var/lib/cryptex-acme \
3  --cert-name cryptex-turn -d turn.example.com \
4  --email [email protected] --agree-tos --non-interactive
5# Review the supplied hook, then install it as root-owned
6sudo install -d -m 0755 /etc/letsencrypt/renewal-hooks/deploy
7sudo install -o root -g root -m 0755 deploy-turn-certificate.sh \
8  /etc/letsencrypt/renewal-hooks/deploy/cryptex-turn
9# Copy the first certificate and key into coturn's protected directory
10sudo env RENEWED_LINEAGE=/etc/letsencrypt/live/cryptex-turn \
11  /etc/letsencrypt/renewal-hooks/deploy/cryptex-turn
12# Start coturn and inspect the TLS listener logs
13docker compose up -d --no-build coturn
14docker compose ps
15docker compose logs --tail=100 coturn

1# Enable Ubuntu's scheduled Certbot renewal
2sudo systemctl enable --now certbot.timer
3sudo systemctl status certbot.timer --no-pager
4# Test renewal and the deploy hook using the active certificate
5sudo certbot renew --cert-name cryptex-turn --dry-run --run-deploy-hooks
6# Check certificate trust and hostname; replace both hostnames
7openssl s_client -connect turn.example.com:5349 \
8  -servername turn.example.com -verify_hostname turn.example.com \
9  -verify_return_error </dev/null

1curl -I https://vault.example.com/app

Do not point turns: at Caddy's HTTPS port. TURN is not HTTP. Using TLS TURN on 443 requires a separate public IP or a purpose-built TCP routing setup. This guide keeps coturn on 5349.

6. Add the servers in Cryptex Vault

In the sending vault, start linking a device and expand Advanced connection. Open the server editor and add the following entries. Names are labels of your choice. Signaling and STUN Host fields do not include https://, wss://, or stun:. TURN accepts a host and port or a full turn: or turns: URL.

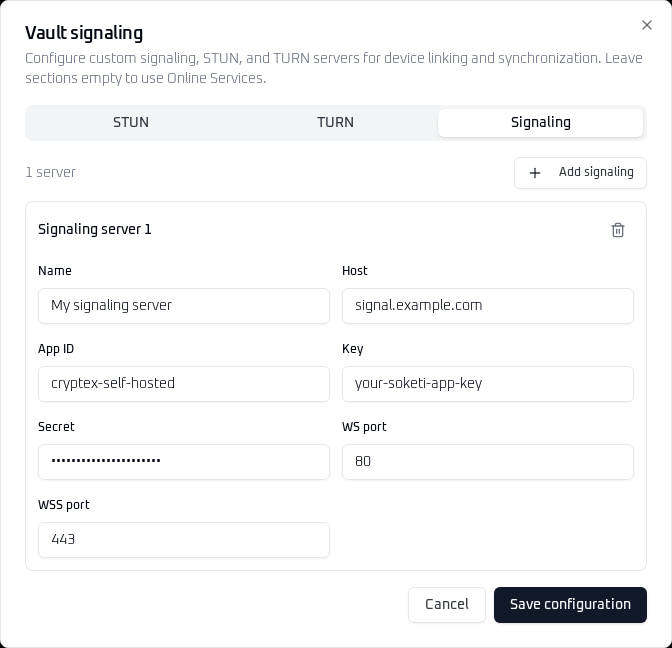

Add your signaling server

View full size

Field	Enter
Name	A label such as My signaling server
Host	signal.example.com
App ID	Your SOKETI_APP_ID
Key	Your SOKETI_APP_KEY
Secret	Your SOKETI_APP_SECRET
WS port	80
WSS port	443, which enables TLS

Save, then select the custom signaling server and the TLS TURN entry for the link. Leave STUN unselected for the TLS-only setup. For regular TURN, select the two alternative TURN entries and optionally the STUN entry. With Online Services disabled, a custom TURN selection is required. Complete the linking flow. The encrypted invitation carries the server configuration to the receiver.

7. Test the complete connection

1. Use two devices on different networks, such as home Wi-Fi and mobile data. Keep both vaults unlocked and online.
2. Create a test entry on one device and synchronize. Confirm it appears on the other, then edit it there and synchronize back.
3. Open the open-source WebRTC Trickle ICE sample. Remove the default server. Enter one TURN URL and your credentials, select Add Server, choose relayfor IceTransports, then select Gather candidates. Look for a candidate with type relay. Test turns:turn.example.com:5349?transport=tcp for the recommended setup and repeat from your other network. For regular TURN, test UDP and TCP separately.

A relay candidate confirms that TURN allocated a relay address. It does not prove data can pass between two devices through that relay. Complete the synchronization test above as well; a direct connection alone does not verify the relay data path.

Only enter credentials into a tester you trust. The sample is open source and can be run locally. Remove your server entry after testing, especially on a shared browser.

8. Maintain the deployment

Update and roll back

1# Validate settings, then pull the new pinned image
2docker compose config --quiet
3docker compose pull web
4# Replace only the web container and check its status
5docker compose up -d --no-build web
6docker compose ps

Review upstream security updates for Soketi, coturn, and Caddy. Update one image reference and its digest at a time in compose.yaml, pull that service, and recreate it. Repeat the linking and relay tests. Store a protected copy of your configuration and back up Caddy's certificate volume.

When something fails

No HTTPS

Check DNS A records, remove stale AAAA records, check ports 80 and 443, and inspect Caddy logs for certificate errors.

Signaling fails

Check the Host and WSS port, the key and secret, and Soketi logs. Confirm client messages are enabled. The public proxy must pass /app/* WebSocket requests.

No relay candidate

Check the TURN username/password, inbound TCP 5349 for TLS or UDP/TCP 3478 for regular TURN and UDP 49160-49260, outbound UDP, and the public/private IP mapping. A running container or a STUN response does not prove relay traffic works.

Works only on some networks

Check TCP 5349 for TLS TURN, or test UDP and TCP 3478 for regular TURN. Networks restricted to 443 may block this setup.

No vault after moving hosts

The new origin has separate browser storage. Restore an encrypted backup or link from a device that still has the vault.

Configuration references: Caddy HTTPS, Soketi, and coturn options. For application errors, use the troubleshooting guide.
